common hook assembly series
Usage and features
The hook assembly is the important part of the crane, has the merit of flexible, reliable, anti-wear, safe and so on. In our company, the bearing in the wheel and the hook nuts are all chosen from the import or the national famous brands, even the wheels and the hooks are all chosen from the fixed providers for Baosteel group.

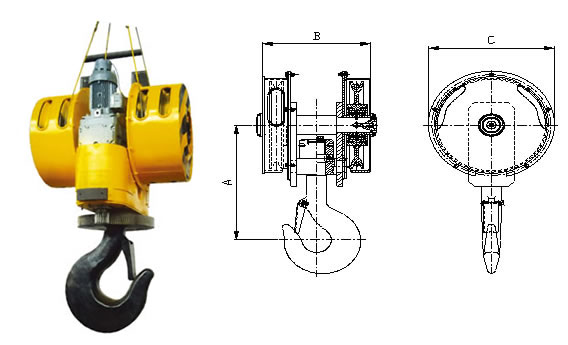

A×B×C(mm)
(t)
kg

HXDG-8t
440×350×410
8
120

HXDG-10t
475×350×410
10
140

HXDG-16t
750×410×520
16
320

HXDG-20t
750×470×520
20
360

HXDG-25t
1200×410×800
25
660

HXDG-32t
1200×570×800
32
750

HXDG-40t
1200×800×850
40
380

HXDG-50t
1250×850×870
50
420

HXDG-60t
1450×680×800
60
1500

HXDG-70t
1350×1350×1160
70
3150

HXDG-80t
1980×960×1230
80
3750
