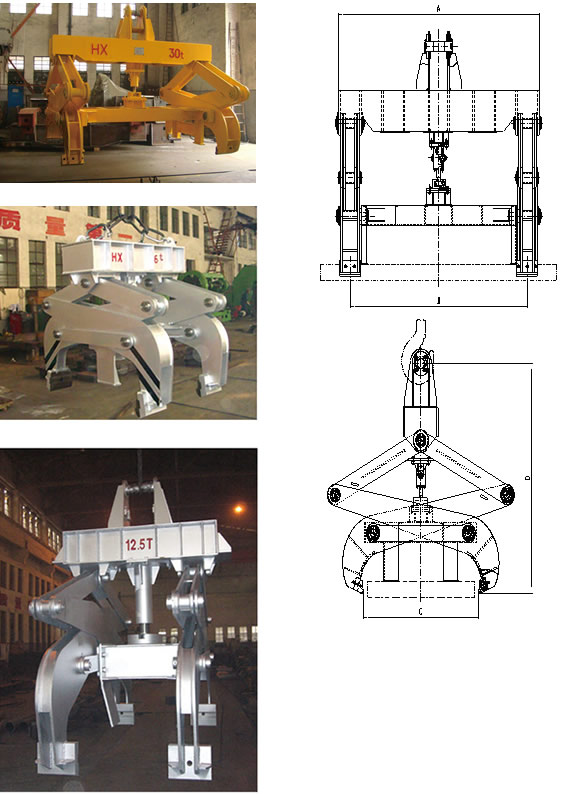

slab clamp(gravity type)
Usage and features
The gravity slab clamp is exclusive used in lifting the steel slab, is mainly used with the crane, the rotary shutter controls the opening or closing of the clamp. This type of clamp has the merit of high working efficiency, easy using, flexible, reliable, safe, easy maintenance and so on. All the rotation joints are designed with oilless bushing and injection nozzle for adding lubricating grease. The jaw is chosen the material of alloy steel and processed special heat treatment, guaranteed that low-cost but serviceable.

A×B×C×D×E (mm)
(t)
(kg)
HXDJZBP-15t
1700×1200×2015×2550
15
3300
HXDJZBP-22t
1700×1200×1100×2350
22
3500
HXDJZBP-30t
3400×3000×1950×2850
30
6500
